NSOM
|
|
|
| Description |

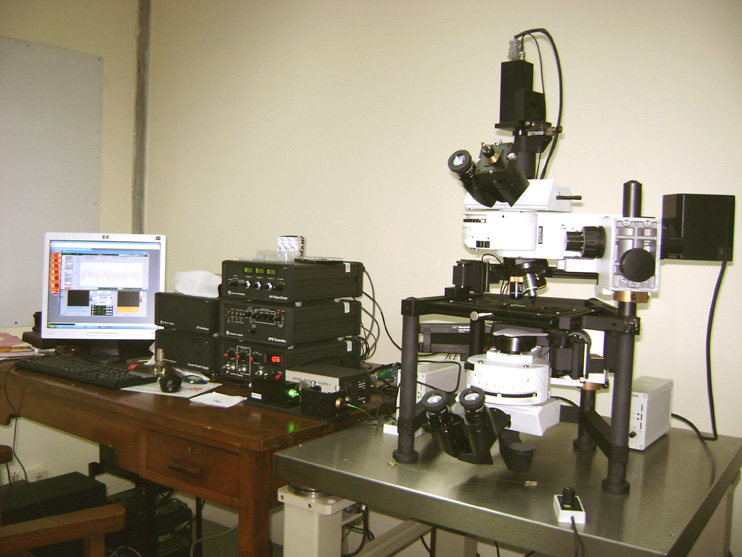

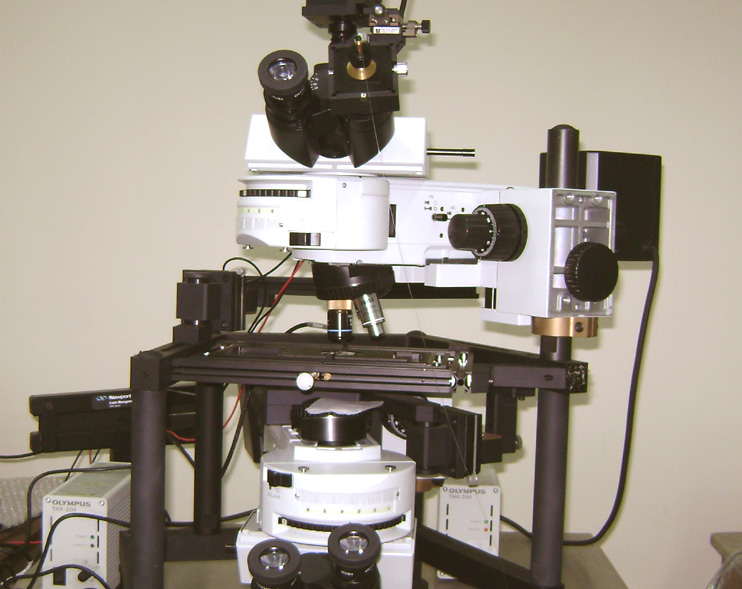

Ambient Near field Scanning Optical Microscope (NSOM) works in different modes for versatile samples |
| Manufacturer |
Nanonics Imaging Limited |
| Model |
Multiview 1000 |
| Installation Place & Date |
Room no 112 & July 2007 |
| Multimode Operation |
1. NSOM ( Near field Scanning Optical Microscope )
2. AFM (Atomic Force Microscopy)
3. Confocal Microscopy |
| Sample Size |
< 25 mm x 25mm |
| NSOM Specification |
Tip Nanonics glass tip of diameter 20 nm
Laser wavelength 532 nm |
| AFM Specification |
Tip Nanonics glass tip of diameter >= 20nm |
| Confocal Microscope Spec. |
Laser wavelength 532 nm |
| Vibration Isolation |
Placed on air float table for vibration isolation |
|
|
