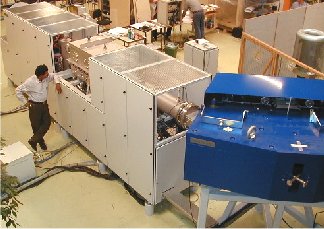

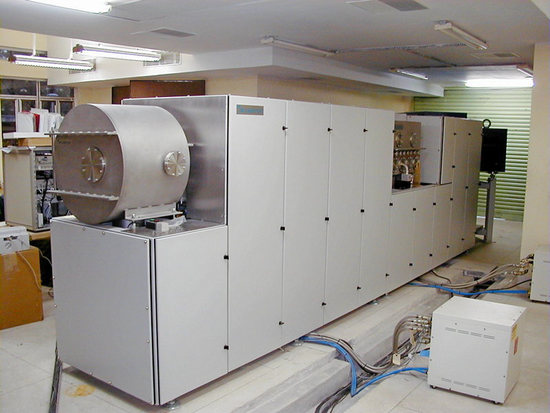

Isotope Separator cum Implanter
|
|
|
| Description |
- |
| Manufacturer |
Danfysik, Denmark |
| Ion Source |
CHORDIS works in gas oven and sputter mode can handle all elements in the periodic table |
| Extraction supply |
50 kV, 80 mA |
| Post Acceleration supply |
150 kV, 50 mA |
| Vacuum system |
Diffstack at the ion source side In beam lines and target chambers Cryopumps with a speed of 1500 lit/sec each |
| Analyzing Magnet |
| Power supply |
70 V, 440 Amp |
| Current stabilty |
10(-5) |
| Bending radius |
1250 mm |
| Deflection angle |
90º |
| Entrance/exit angle |
27.3º |
| Maximum field |
0.52 Tesla |
| Pole gap |
140 mm |
| Pole width |
440 mm |
| Power consumption |
30 kW |
|
|
|
|
